E2-MIX20884-D

Image for Illustration purposes only. Actual product may vary

Red Lion Controls E2-MIX20884-D ETRAK2 I/O w/20 DI 4 ISO counters 8 DO 8 AI 4 AO

MODEL E2-MIX20884-D

SKU

2302986

UOM

each

Contact supplier for technical support on: 877-432-9908

Click for 8% off

$1,454.00 Each

Prices are subject to change

FREE SHIPPING ON ORDERS OVER $1

Select Quantity

GET A QUOTE

Free Gift with this product

Typically Ships in: 1 day

Returnable: See conditions

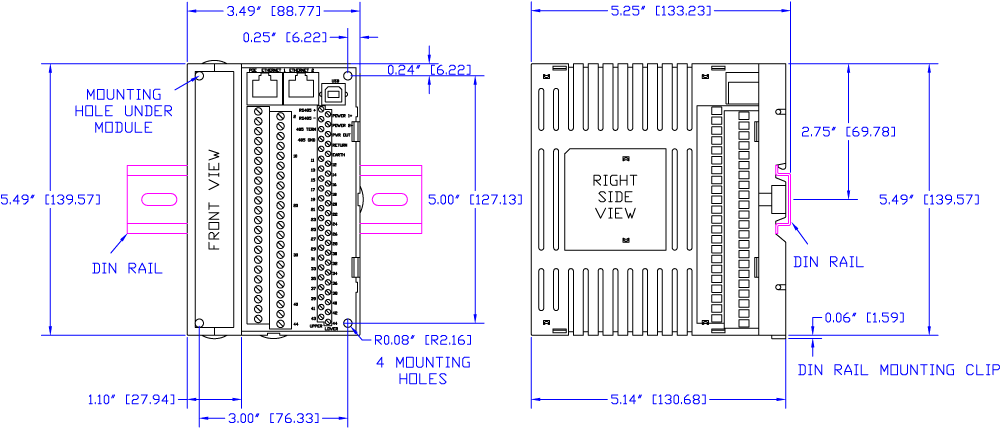

Specifications:

Isolated Discrete Input Channels

Channels: 1-4
Voltage range: 5 – 30 VDC
Guaranteed ON voltage: 3.0 VDC
Guaranteed OFF voltage: 1.5 VDC
Guaranteed OFF current: 1 mA DC
Input resistance (@ 24 VDC): 2.5K Ohms
Input current (@ 24 VDC): 9.6 mA
Common mode and channel-to-channel Isolation: 150 VDC
Filtered ON/OFF delay: 25 ms (20 Hz. max. counting rate)
Fastest response: 1 ms (400 Hz. max. counting rate)
Special fast counting rate: Up to 50 KHz
Pulse Counting Options: Count up, pulse timing and pulse rate 16 or 32 bit reporting

Non-Isolated Discrete Input Channels

Channels: 5-12
Voltage range : 10 – 30 VDC
Guaranteed ON voltage: 9.0 VDC
Guaranteed OFF voltage: 5.0 VDC
Guaranteed OFF current: 2 mA DC
Input resistance: 10K Ohms
Input current (@ 24 VDC) 3 mA
Input Polarity: Sourcing (apply power to active) or sinking (ground closure) on 8 inputs
Input Protection: High Impedance with overvoltage protection
Filtered ON/OFF delay: 25 ms (20 Hz. max. counting rate)
Fastest response: 1 ms (400 Hz. max. counting rate)
Pulse Counting Options: Count up, pulse timing and pulse rate 16 or 32 bit reporting

Non-Isolated Combination Discrete Input Channels

Channels: 13-20
Channel Type: Discrete input and discrete output combination channel (software selectable)
Voltage range : 10 – 30 VDC
Guaranteed ON voltage: 9.0 VDC
Guaranteed OFF voltage: 5.0 VDC
Guaranteed OFF current: 2 mA DC
Input resistance: 10K Ohms
Input current (@ 24 VDC) 3 mA
Input Protection: High Impedance with overvoltage protection
Filtered ON/OFF delay: 25 ms (20 Hz. max. counting rate)
Fastest response: 1 ms (400 Hz. max. counting rate)
Pulse Counting Options: Count up, pulse timing and pulse rate 16 or 32 bit reporting

Discrete Output Channels

  • Output voltage range 10-30 VDC
  • Max. output power: 1A per channels, 8A per module, .8A at 60°C 1 channel, .4A at 60°C 8 channels at 24 VDC
  • Max. off state leakage: 0.01 mA (less than 10 uA)
  • Short circuit protection, self-reset fuses (trip above 1.5 Amp)
  • Min. load: 1 mA
  • Inrush current: 5 Amps (100 ms surge)
  • Typical on resistance: 0.3 Ohms (Drop 0.3 VDC @ 1 Amp)
  • All channels Scan rate: 1 ms

Analog Input Channels

  • Analog Input Range: 4-20 mA
  • A/D resolution 16 bits (0.003%) 10 bits (fast option)
  • Full scale accuracy: +/- 0.02% (at 20 °C, 16 bit mode)
  • Temperature coefficient +/- 50 ppm per °C (span and offset)
  • Input impedance (resistance): 100 ohms
  • Protection: Self-resetting short circuit protection fuses
  • DMRR (differential mode) 66 db at 50/60 Hz
  • Fastest update time [# of chan.]: 880 ms [all] -16-bit; 145 ms [all] -14-bit; 1 ms [2] -10-bit

Analog Output Channels

Analog output range: 4-20 mA, 0-20 mA, 0-5 VDC
D/A resolution 16 bits (less than 1 uA)
Full scale accuracy +/-0.02% (at 20°C); All ranges after calibration
4-20mA full scale accuracy +/-0.02% (at 20°C); Before calibration
0-20mA full scale accuracy +/-0.1% (at 20°C); Before calibration
Span and offset temp. +/- 50 ppm per °C typ.
Max. output settling time 5 ms (to .05%)
Max. Load resistance (@ 24 V) 750 Ohms
Max. Load resistance (@ 10V) 300 Ohms
Current limiting short circuit protection
0-5VDC full scale accuracy +/-0.5% (at 20°C); Before calibration
Min. load resistance (0-5VDC range): 20 KOhms

Configuration

  • Configured using Sixnet I/O Tool Kit
  • Graphical User Interface (GUI)
