Image for Illustration purposes only. Actual product may vary
FAG 2206K.2RS.TV.C3 Self-Aligning Ball Bearings
MODEL 2206K.2RS.TV.C3
$65.61 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $1
Select Quantity
Orders over $500 qualify for a Free Gift
Typically Ships in: 1 day
Returnable:No
I.D.
1 1/6 in
Specifications

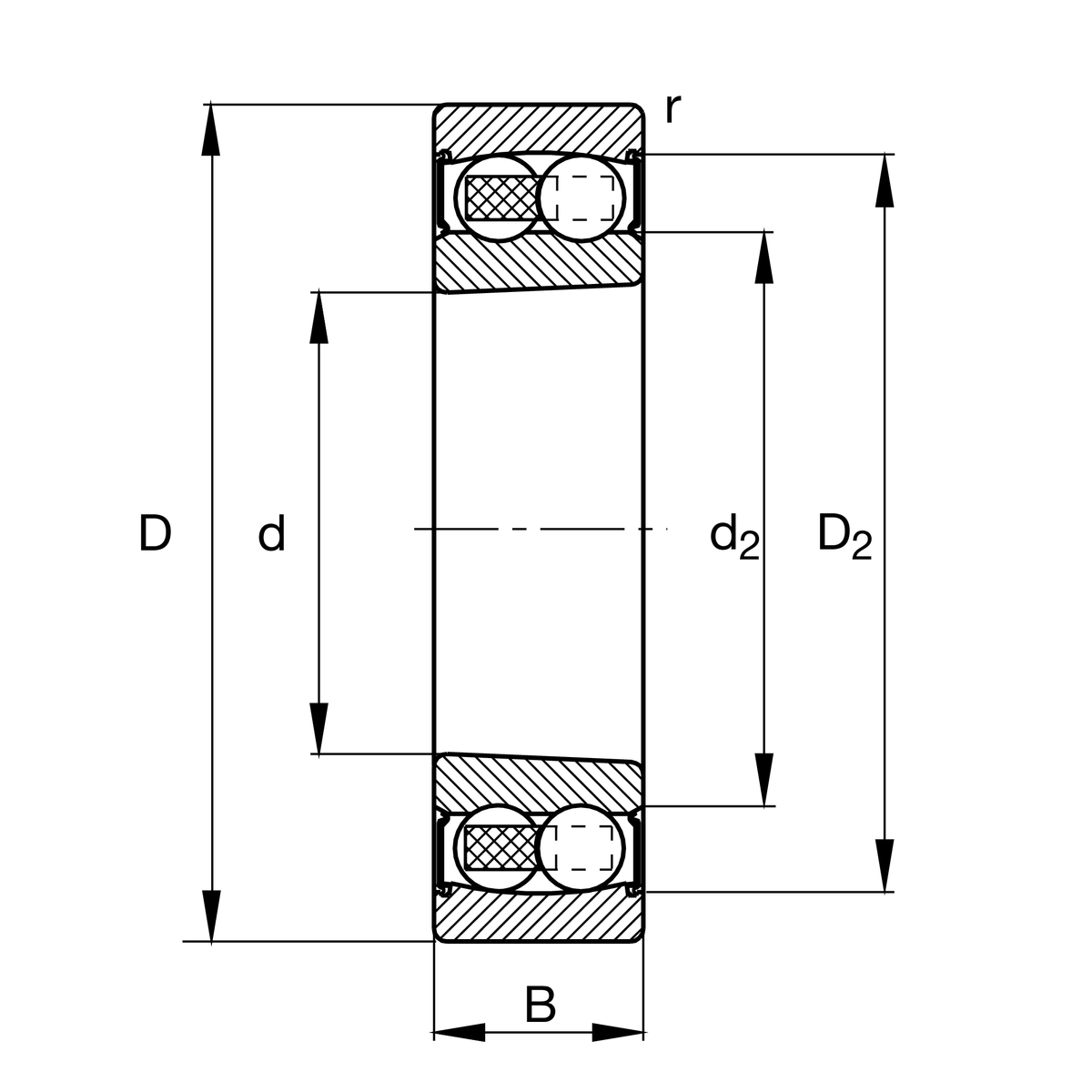

| d | 30 mm | |
| D | 62 mm | |
| B | 20 mm |
| D 2 | 54, 3 mm | |
| D a max | 56, 4 mm | |
| d 2 | 37, 3 mm | |
| d a min | 35, 6 mm | |
| r a max | 1 mm | |
| r min | 1 mm |
| Mass | 0, 268 kg | m |
|---|---|---|
| Basic dynamic load rating, radial | 15900 N | C r |
| e | 0, 25 | |
| Y 1 | 2, 53 | |
| Y 2 | 3, 91 | |
| Basic static load rating, radial | 4600 N | C 0r |
| Y 0 | 2, 65 | |
| Limiting speed | 8000 1/min | n G |
| Reference speed | - 1/min | n B |
| Fatigue limit load, radial | 285 N | C ur |
