![CNHX 050210ER-WM:M8330](https://static.mrosupply.com/cache/ca/a5/caa54bcdf2aa52570d60076337cf04d4.jpg)
Image for Illustration purposes only. Actual product may vary
Pramet CNHX 050210ER-WM:M8330 7639198 Milling Insert - Copy and Profile
MODEL CNHX 050210ER-WM:M8330
This product has a minimum order quantity of (10 minimum) This is the minimum order quantity available when purchasing this product.
$16.96 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $1
Select Quantity(10 minimum)
Orders over $500 qualify for a Free Gift
Typically Ships in: 1 day
Returnable: Yes
Chipbreaker
WM
Coating
M8330
Coating process
PVD
Coating property (CTP)
1
Cooling effect
Slightly negative effect on tool life

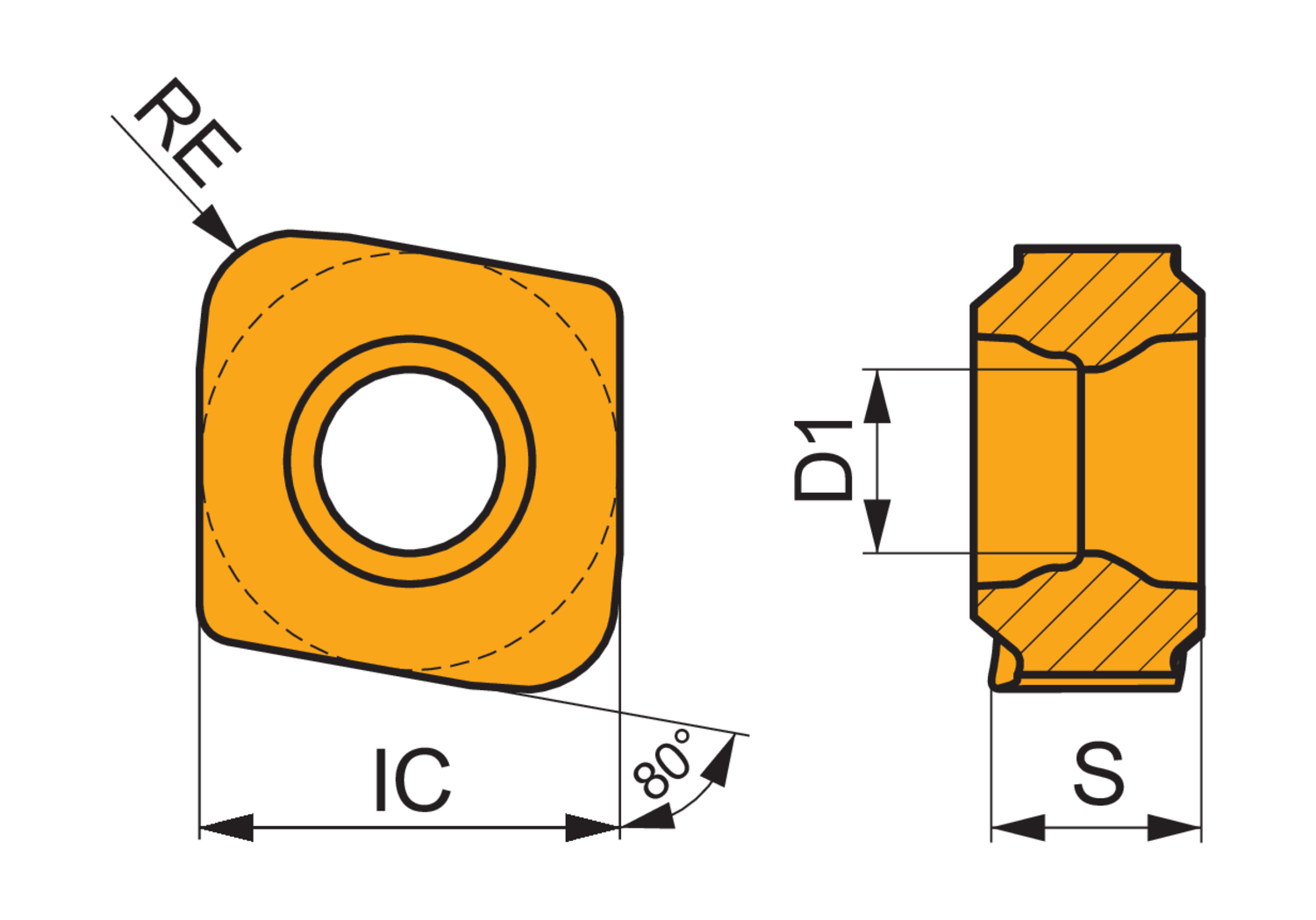

Corner radius - inch (RE)
0.039
Corner radius - millimeter (RE)
1
Depth of cut maximum - inch (APMX)
0.039
Depth of cut maximum - millimeter (APMX)
1
Depth of cut minimum - inch (APMN)
0.004
Depth of cut minimum - millimeter (APMN)
0.1
Feed maximal - millimeter
0.15
Feed minimal - millimeter
0.05
Feed_MAX_IMP_NUM
0.006
Feed_MIN_IMP_NUM
0.002
Fixing hole diameter - inch (D1)
0.083
Fixing hole diameter - millimeter (D1)
2.1
Inscribed circle diameter - inch (IC)
0.189
Inscribed circle diameter - millimeter (IC)
4.8
Insert thickness - inch (S)
0.094
Insert thickness - millimeter (S)
2.4
Double-sided milling insert CNHX 0502, 80° rhomboid and wiper design for a maximum depth of cut of 1.0mm, with 1.0mm corner radius, an indexing accuracy according to ISO-tolerance class-H and WM geometry with rounded cutting edges, M8330 PVD coated fine grained WC-Co carbide within ISO-grade ranges P20-P40 and K20-K40 for machining of steel and cast-iron with copy face mills SCN05C
