Image for Illustration purposes only. Actual product may vary
Pramet PPHT 120020-A2:2003 7156115 Milling Insert - Copy and Profile
MODEL PPHT 120020-A2:2003
This product has a minimum order quantity of (10 minimum) This is the minimum order quantity available when purchasing this product.
$33.63 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $1
Select Quantity(10 minimum)
Orders over $500 qualify for a Free Gift
Typically Ships in: 1 day
Returnable: Yes
Chipbreaker
A2
Coating
2003
Coating process
PVD
Coating property (CTP)
1
Cooling effect
Slightly negative effect on tool life
Corner radius - inch (RE)
0.079
Corner radius - millimeter (RE)
2
Depth of cut maximum - inch (APMX)
0.079
Depth of cut maximum - millimeter (APMX)
2
Depth of cut minimum - inch (APMN)
0.004
Depth of cut minimum - millimeter (APMN)
0.1
Feed maximal - millimeter
0.2
Feed minimal - millimeter
0.05
Feed_MAX_IMP_NUM
0.008
Feed_MIN_IMP_NUM
0.002

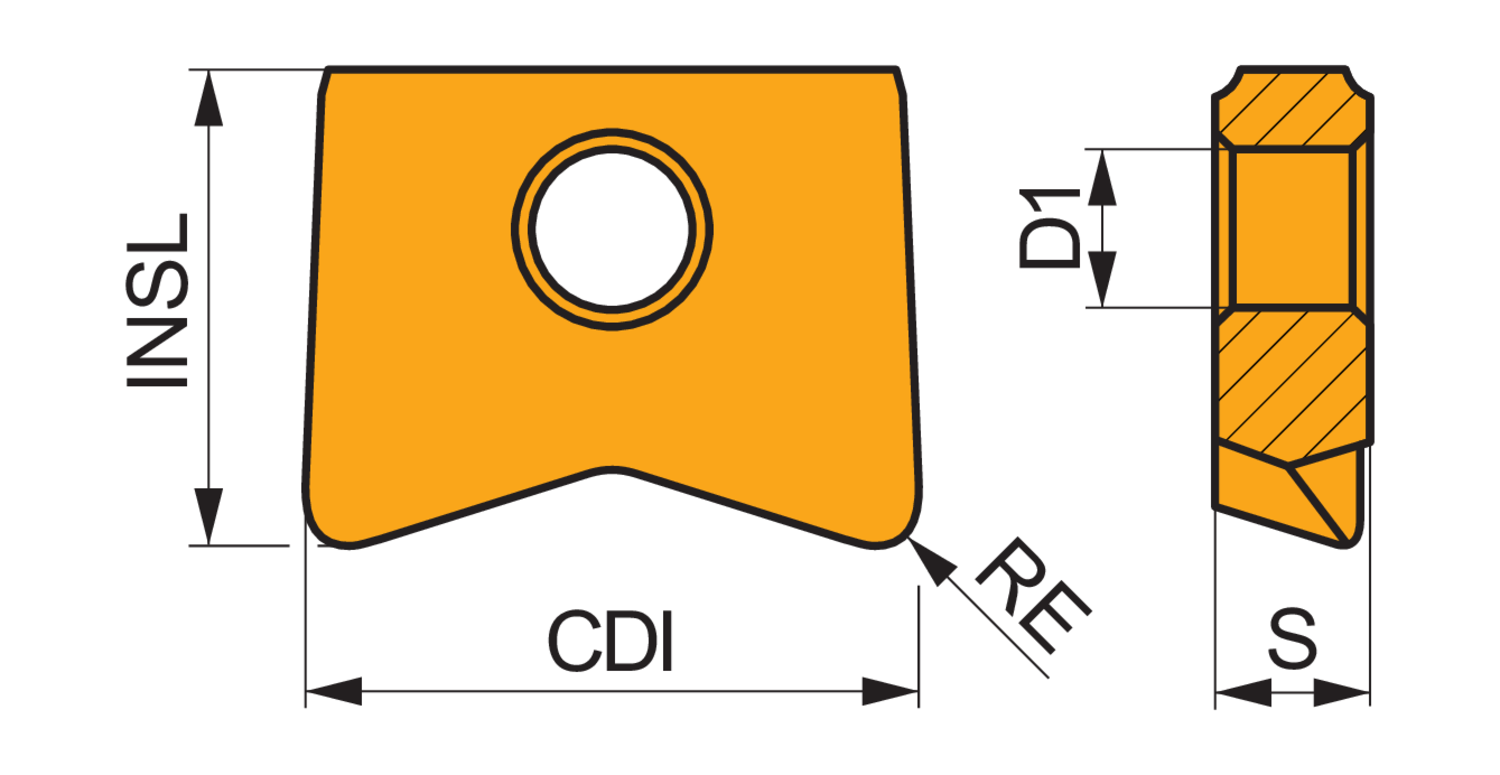

Fixing hole diameter - inch (D1)
0.138
Fixing hole diameter - millimeter (D1)
3.5
Insert cutting diameter - inch (CDI)
0.472
Insert cutting diameter - millimeter (CDI)
12
Insert length - inch (INSL)
0.394
Insert thickness - inch (S)
0.118
Insert thickness - millimeter (S)
3
Toroidal copy milling insert with a diameter of 12mm and 2.0mm corner radii for a maximum depth of cut of 2.0mm, A2 geometry and 2003 PVD coated fine grained WC-Co carbide within ISO-grade ranges P01-P10/K01-K10 and H05-H15 for machining of steel, cast-iron and hardened material with copy end mills K2-PPH
