Image for Illustration purposes only. Actual product may vary
Pramet RDHX 1604MOT:M8325 6756008 Milling Insert - Copy and Profile
MODEL RDHX 1604MOT:M8325
This product has a minimum order quantity of (10 minimum) This is the minimum order quantity available when purchasing this product.
$17.33 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $1
Select Quantity(10 minimum)
Orders over $500 qualify for a Free Gift
Typically Ships in: 1 day
Returnable: Yes
Chipbreaker
No chipbreaker
Coating
M8325
Coating process
PVD
Coating property (CTP)
1
Cooling effect
Slightly negative effect on tool life
Depth of cut maximum - inch (APMX)
0.157
Depth of cut maximum - millimeter (APMX)
4
Depth of cut minimum - inch (APMN)
0.039
Depth of cut minimum - millimeter (APMN)
1
Feed maximal - millimeter
0.4
Feed minimal - millimeter
0.2
Feed_MAX_IMP_NUM
0.016
Feed_MIN_IMP_NUM
0.008

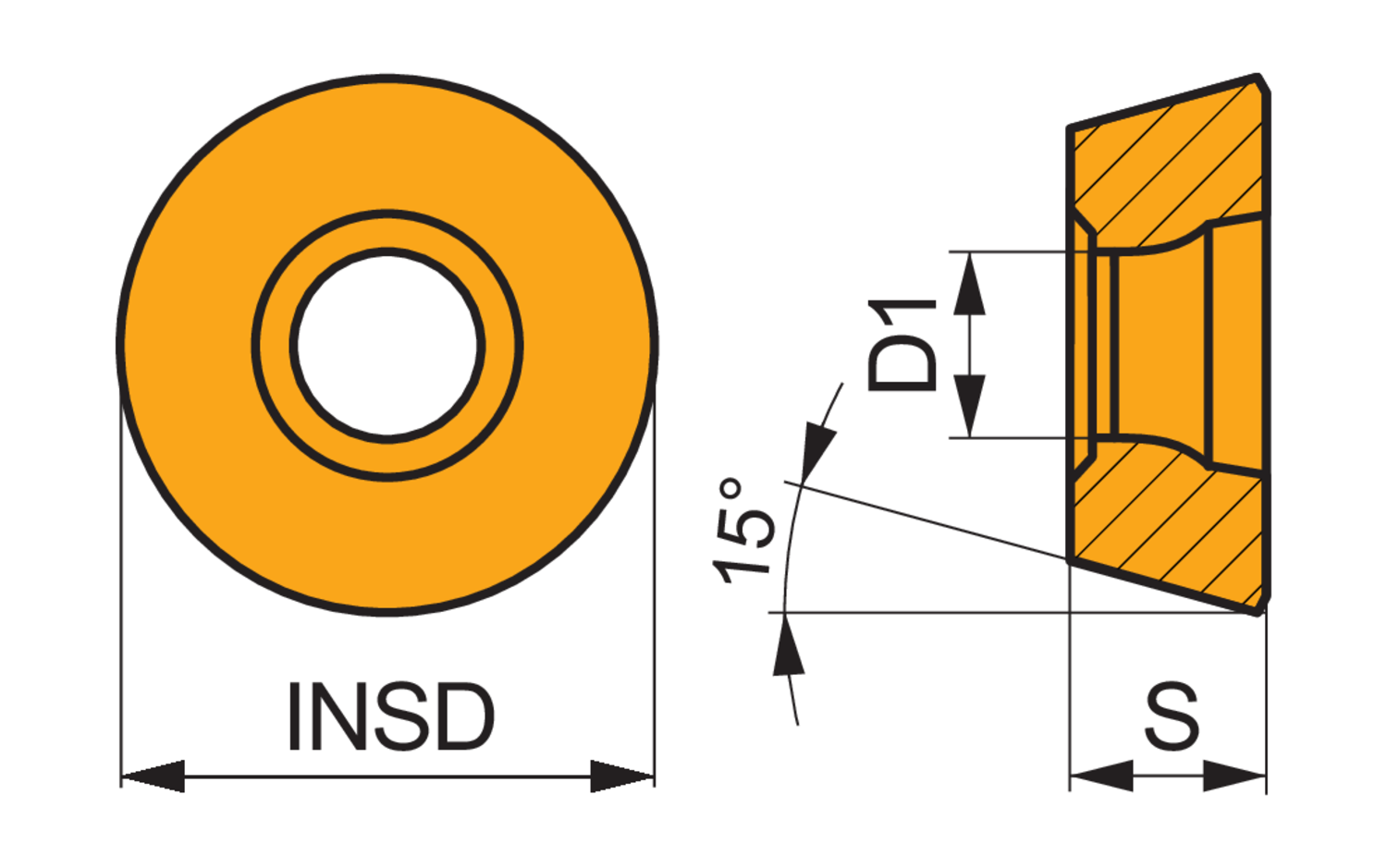

Fixing hole diameter - inch (D1)
0.205
Fixing hole diameter - millimeter (D1)
5.2
Insert diameter - inch (INSD)
0.63
Insert diameter - millimeter (INSD)
16
Insert thickness - inch (S)
0.187
Insert thickness - millimeter (S)
4.76
Single-sided milling insert RDHX 1604, round for a maximum depth of cut of 4.0mm, with an indexing accuracy according to ISO-tolerance class-H with cutting edges with facet, M8325 PVD coated WC-(Ti, Ta, Nb)C-Co carbide for machining with copy face mills SRD16
