Pramet RDMT 1003MOT:M8325 7343097 Milling Insert - Copy and Profile
MODEL RDMT 1003MOT:M8325
This product has a minimum order quantity of (10 minimum) This is the minimum order quantity available when purchasing this product.
$10.71 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $1
Select Quantity(10 minimum)
Orders over $500 qualify for a Free Gift
Typically Ships in: 1 day
Returnable: Yes
Chipbreaker
With chipbreaker -no designation
Coating
M8325
Coating process
PVD
Coating property (CTP)
1
Cooling effect
Slightly negative effect on tool life
Depth of cut maximum - inch (APMX)
0.098
Depth of cut maximum - millimeter (APMX)
2.5
Depth of cut minimum - inch (APMN)
0.02
Depth of cut minimum - millimeter (APMN)
0.5
Feed maximal - millimeter
0.3
Feed minimal - millimeter
0.12
Feed_MAX_IMP_NUM
0.012
Feed_MIN_IMP_NUM
0.005

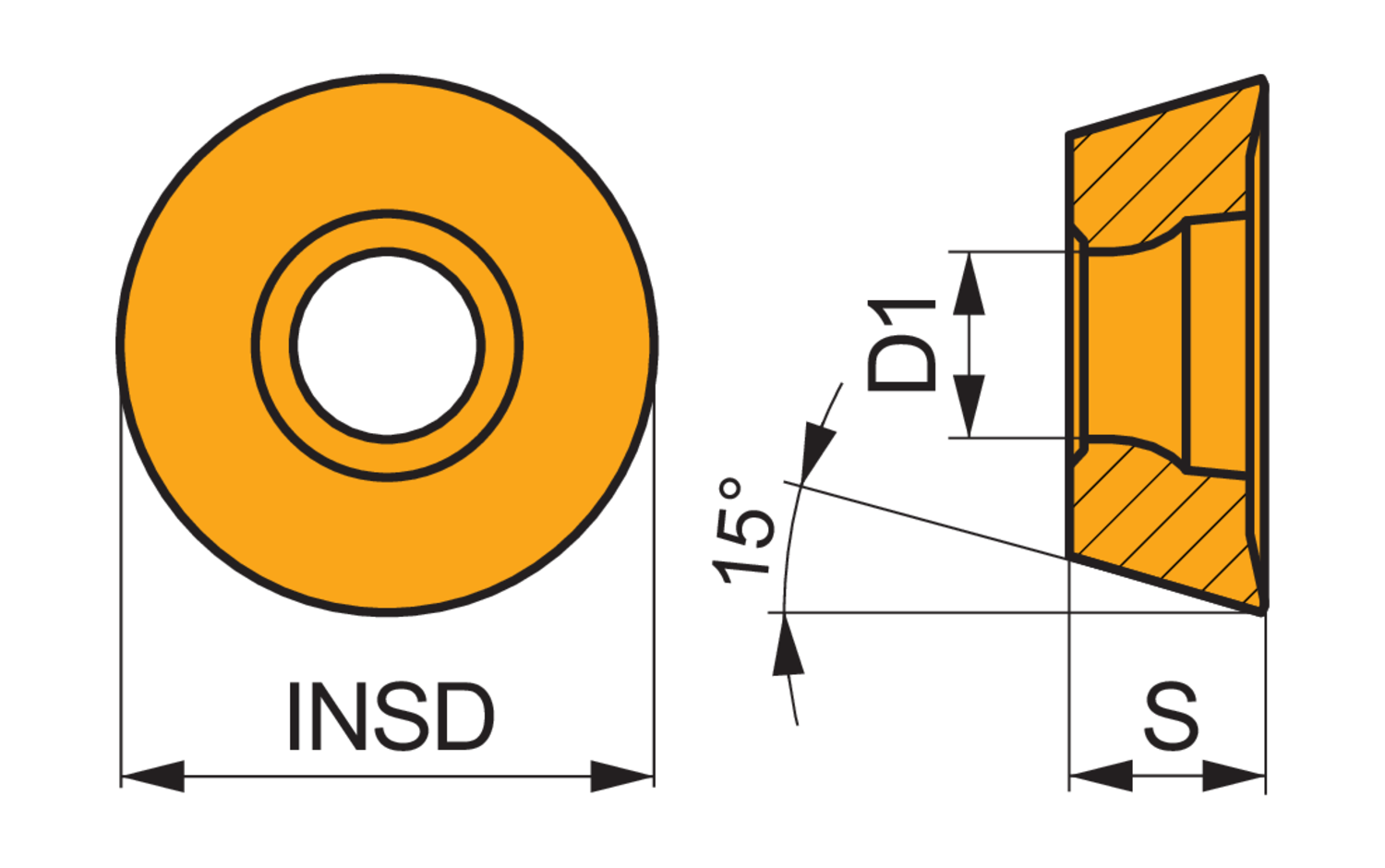

Fixing hole diameter - inch (D1)
0.154
Fixing hole diameter - millimeter (D1)
3.9
Insert diameter - inch (INSD)
0.394
Insert diameter - millimeter (INSD)
10
Insert thickness - inch (S)
0.125
Insert thickness - millimeter (S)
3.18
Single-sided milling insert RDMT 1003 with chip-breakers, round for a maximum depth of cut of 2.5mm, with an indexing accuracy according to ISO-tolerance class-M with cutting edges with facet, M8325 PVD coated WC-(Ti, Ta, Nb)C-Co carbide within ISO-grade range P20-P40 for machining of steel with copy face mills SRD10
