Pramet RDMX 1003MOT:M8345 6801019 Milling Insert - Copy and Profile
MODEL RDMX 1003MOT:M8345
This product has a minimum order quantity of (10 minimum) This is the minimum order quantity available when purchasing this product.
$8.22 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $1
Select Quantity(10 minimum)
Orders over $500 qualify for a Free Gift
Typically Ships in: 1 day
Returnable: Yes
Chipbreaker
No chipbreaker
Coating
M8345
Coating process
PVD
Coating property (CTP)
1
Depth of cut maximum - inch (APMX)
0.098
Depth of cut maximum - millimeter (APMX)
2.5
Depth of cut minimum - inch (APMN)
0.02
Depth of cut minimum - millimeter (APMN)
0.5
Feed maximal - millimeter
0.3
Feed minimal - millimeter
0.1
Feed_MAX_IMP_NUM
0.012
Feed_MIN_IMP_NUM
0.004

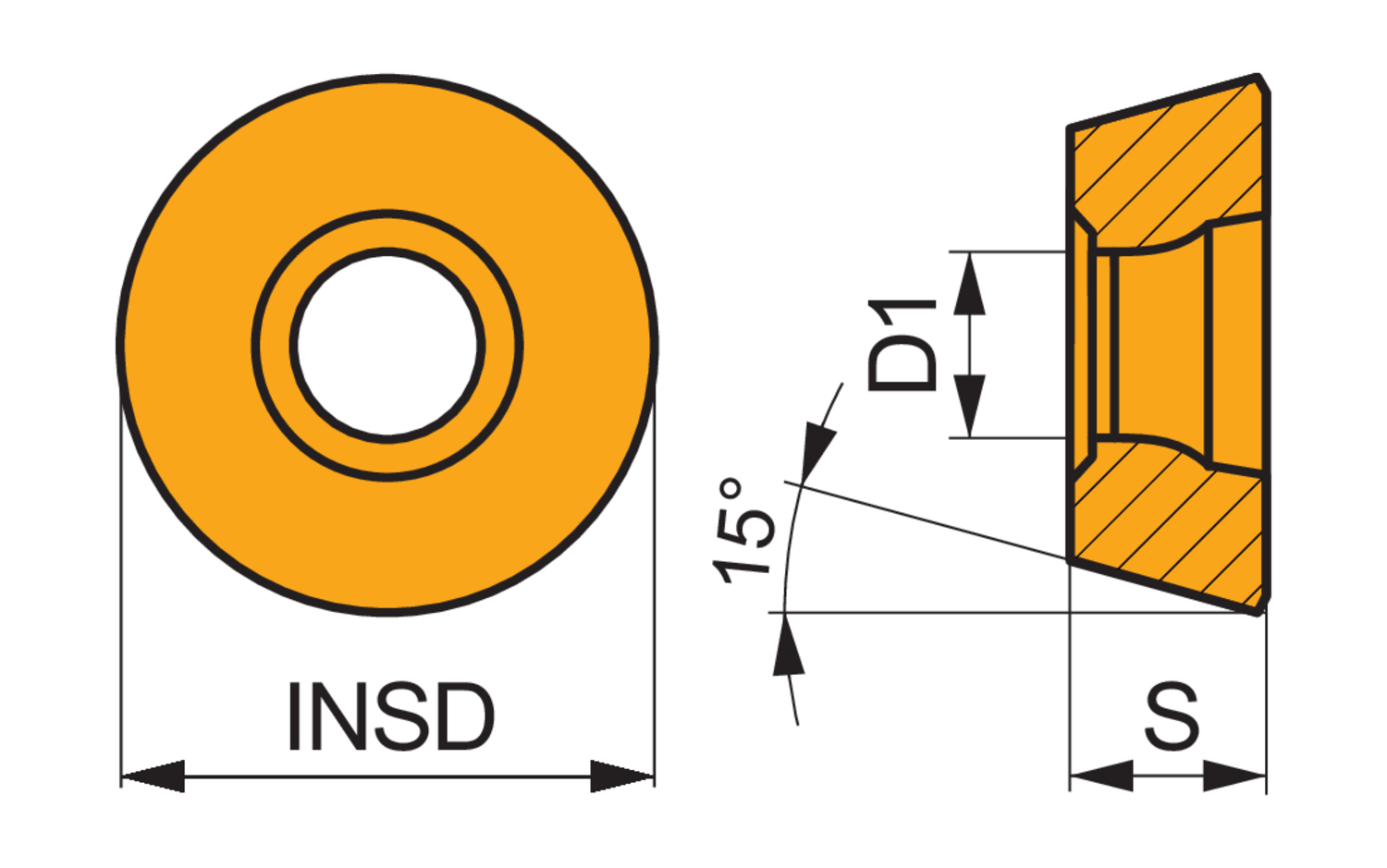

Fixing hole diameter - inch (D1)
0.154
Fixing hole diameter - millimeter (D1)
3.9
Insert diameter - inch (INSD)
0.394
Insert diameter - millimeter (INSD)
10
Insert thickness - inch (S)
0.125
Insert thickness - millimeter (S)
3.18
Single-sided milling insert RDMX 1003, round for a maximum depth of cut of 2.5mm, with an indexing accuracy according to ISO-tolerance class-M with cutting edges with facet, M8345 PVD coated WC-Co carbide for machining with copy face mills SRD10
