Pramet LNGX 120504FR-FA:HF7 6798579 Milling Insert - Square Shoulder
MODEL LNGX 120504FR-FA:HF7
This product has a minimum order quantity of (10 minimum) This is the minimum order quantity available when purchasing this product.
$22.00 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $1
Select Quantity(10 minimum)
Orders over $500 qualify for a Free Gift
Typically Ships in: 1 day
Returnable: Yes
Coating
0.014
Coating process
0.001
Cooling effect
FA

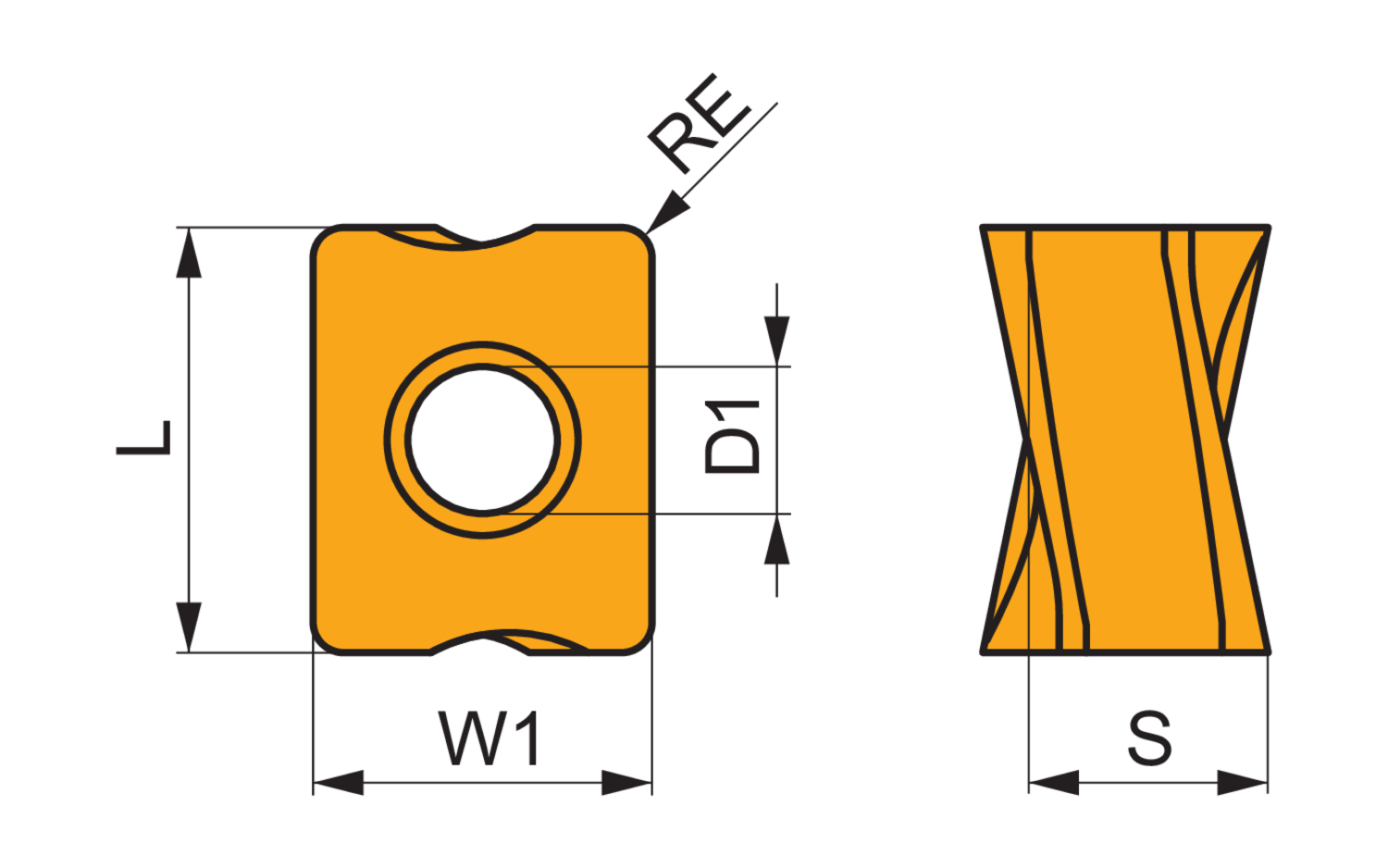

Corner radius - inch (RE)
HF7
Cutting edge length - inch (L)
0.472
Cutting edge length - millimeter (L)
12
Depth of cut maximum - inch (APMX)
0.354
Depth of cut maximum - millimeter (APMX)
9
Feed maximal - millimeter
0.35
Feed minimal - millimeter
0.03
Feed_MAX_IMP_NUM
0.008
Feed_MIN_IMP_NUM
0.2
Fixing hole diameter - inch (D1)
0.177
Fixing hole diameter - millimeter (D1)
4.5
Insert cutting diameter - millimeter (CDI)
5.96
Insert diameter - inch (INSD)
0.374
Insert diameter - millimeter (INSD)
9.5
Insert thickness - inch (S)
0.4
Major cutting edge angle (KRINS)
0.016
Double-sided milling insert LNGX 1205, rectangular for a maximum depth of cut of 9.0mm, with 0.4mm corner radius, an indexing accuracy according to ISO-tolerance class-G and FA geometry with sharp cutting edges, HF7 uncoated fine grained WC-Co carbide within ISO-grade range N10-N25 for machining of non-ferrous metal with shoulder mills SLN12
