Pramet HNGX 0604ANSN-R:M9325 6753658 Milling Insert - Face
MODEL HNGX 0604ANSN-R:M9325
This product has a minimum order quantity of (10 minimum) This is the minimum order quantity available when purchasing this product.
$14.75 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $1
Select Quantity(10 minimum)
Orders over $500 qualify for a Free Gift
Typically Ships in: 1 day
Returnable: Yes
Chipbreaker
R
Coating
M9325
Coating process
MT-CVD
Coating property (CTP)
1
Cooling effect
Very negative effect on tool life - cooling is not recommended
Depth of cut maximum - inch (APMX)
0.118
Depth of cut maximum - millimeter (APMX)
3
Depth of cut minimum - inch (APMN)
0.039
Depth of cut minimum - millimeter (APMN)
1
Feed maximal - millimeter
0.3
Feed minimal - millimeter
0.18
Feed_MAX_IMP_NUM
0.012
Feed_MIN_IMP_NUM
0.007

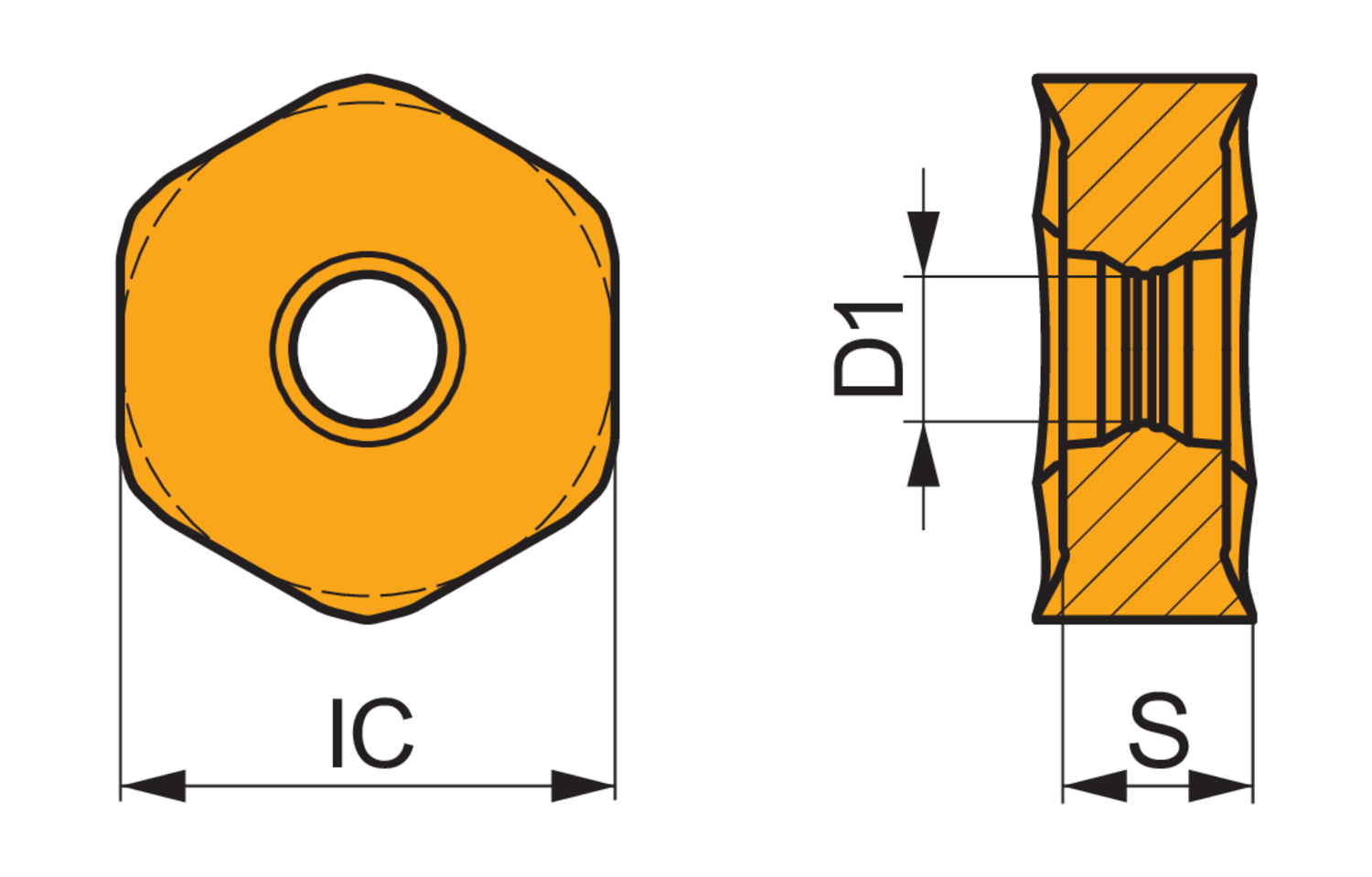

Fixing hole diameter - inch (D1)
0.146
Fixing hole diameter - millimeter (D1)
3.7
Inscribed circle diameter - inch (IC)
0.413
Inscribed circle diameter - millimeter (IC)
10.5
Insert thickness - inch (S)
0.187
Insert thickness - millimeter (S)
4.76
Double-sided milling insert HNGX 0604, hectagonal for a maximum depth of cut of 3.0mm, with an indexing accuracy according to ISO-tolerance class-G and R geometry with rounded cutting edges and facet, M9325 MT-CVD coated WC-Co carbide for machining of steel with face mills SHN06C
