![LNMU 160716SR-R:M9325](https://static.mrosupply.com/cache/87/ca/87cad9098d0b4372ecb549e7dca27207.jpg)
Image for Illustration purposes only. Actual product may vary
Pramet LNMU 160716SR-R:M9325 6941428 Milling Insert - Square Shoulder
MODEL LNMU 160716SR-R:M9325
This product has a minimum order quantity of (10 minimum) This is the minimum order quantity available when purchasing this product.
$19.67 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $1
Select Quantity(10 minimum)
Orders over $500 qualify for a Free Gift
Typically Ships in: 1 day
Returnable: Yes
Coating
0.014
Coating process
0.006
Coating property (CTP)
1
Cooling effect
R

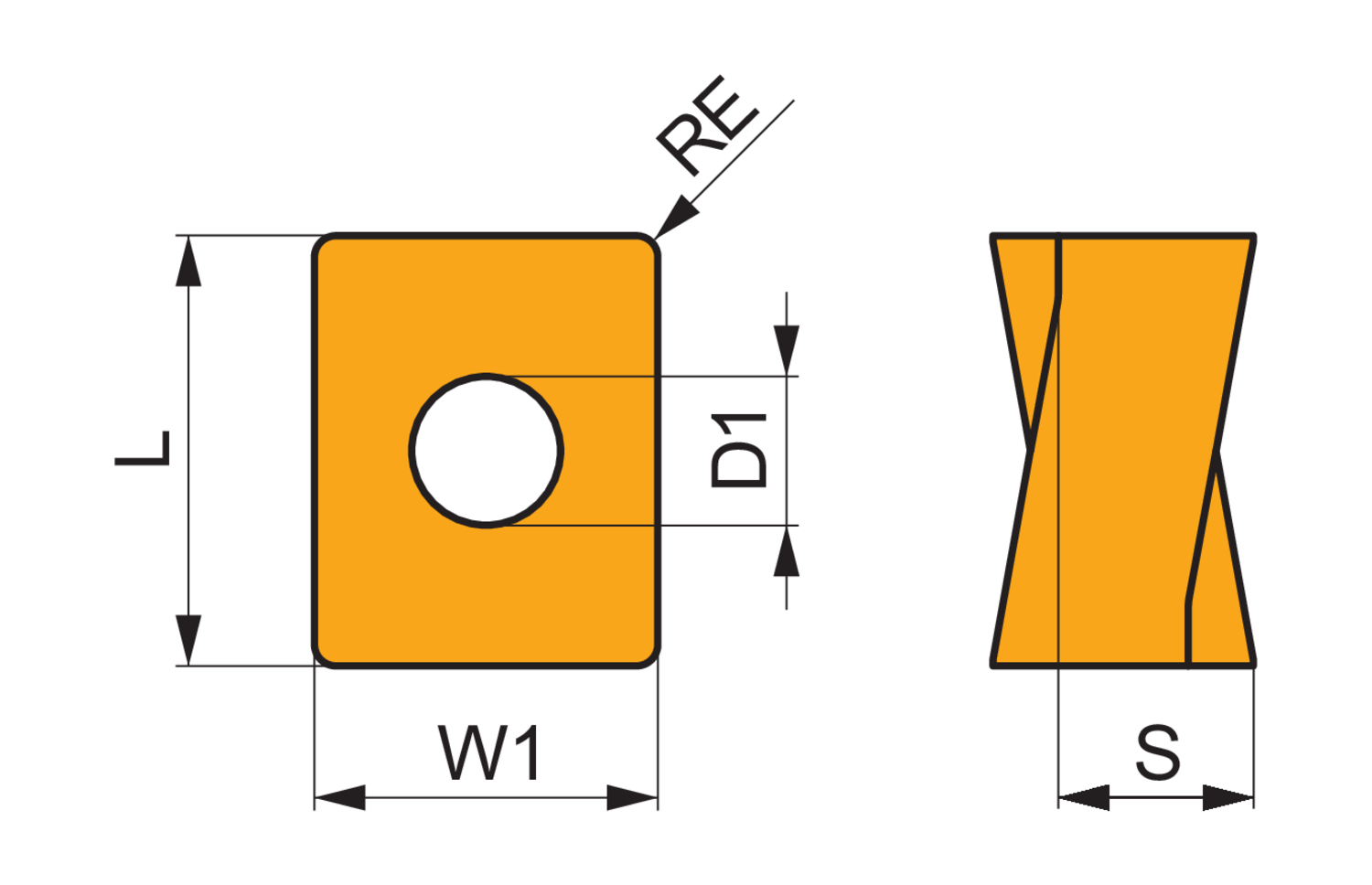

Corner radius - inch (RE)
M9325
Corner radius - millimeter (RE)
MT-CVD
Cutting edge length - inch (L)
0.654
Cutting edge length - millimeter (L)
16.6
Depth of cut maximum - inch (APMX)
0.512
Depth of cut maximum - millimeter (APMX)
13
Feed maximal - millimeter
0.36
Feed minimal - millimeter
0.15
Feed_MAX_IMP_NUM
0.039
Feed_MIN_IMP_NUM
1
Fixing hole diameter - inch (D1)
0.224
Fixing hole diameter - millimeter (D1)
5.7
Insert cutting diameter - millimeter (CDI)
7.5
Insert diameter - inch (INSD)
0.52
Insert diameter - millimeter (INSD)
13.2
Insert thickness - inch (S)
1.6
Major cutting edge angle (KRINS)
0.063
Wiper edge length - inch (BS)
Very negative effect on tool life - cooling is not recommended
Double-sided milling insert LNMU 1607 with chip-breakers, rectangular for a maximum depth of cut of 13.0mm, with 1.6mm corner radius, an indexing accuracy according to ISO-tolerance class-M and R geometry with rounded cutting edges and facet, M9325 MT-CVD coated WC-Co carbide for machining of steel with shoulder mills SLN16
