Pramet SNGX 130512SN-M:M8340 6801321 Milling Insert - Heavy Duty

MODEL 6801321

BRAND

Pramet

SKU

6063249

UOM

each

This product has a minimum order quantity of (10 minimum) This is the minimum order quantity available when purchasing this product.

$15.79 Each

Prices are subject to change

FREE SHIPPING ON ORDERS OVER $1

Select Quantity(10 minimum)

GET A QUOTE

Orders over $500 qualify for a Free Gift

Typically Ships in: 1 day

Returnable: Yes

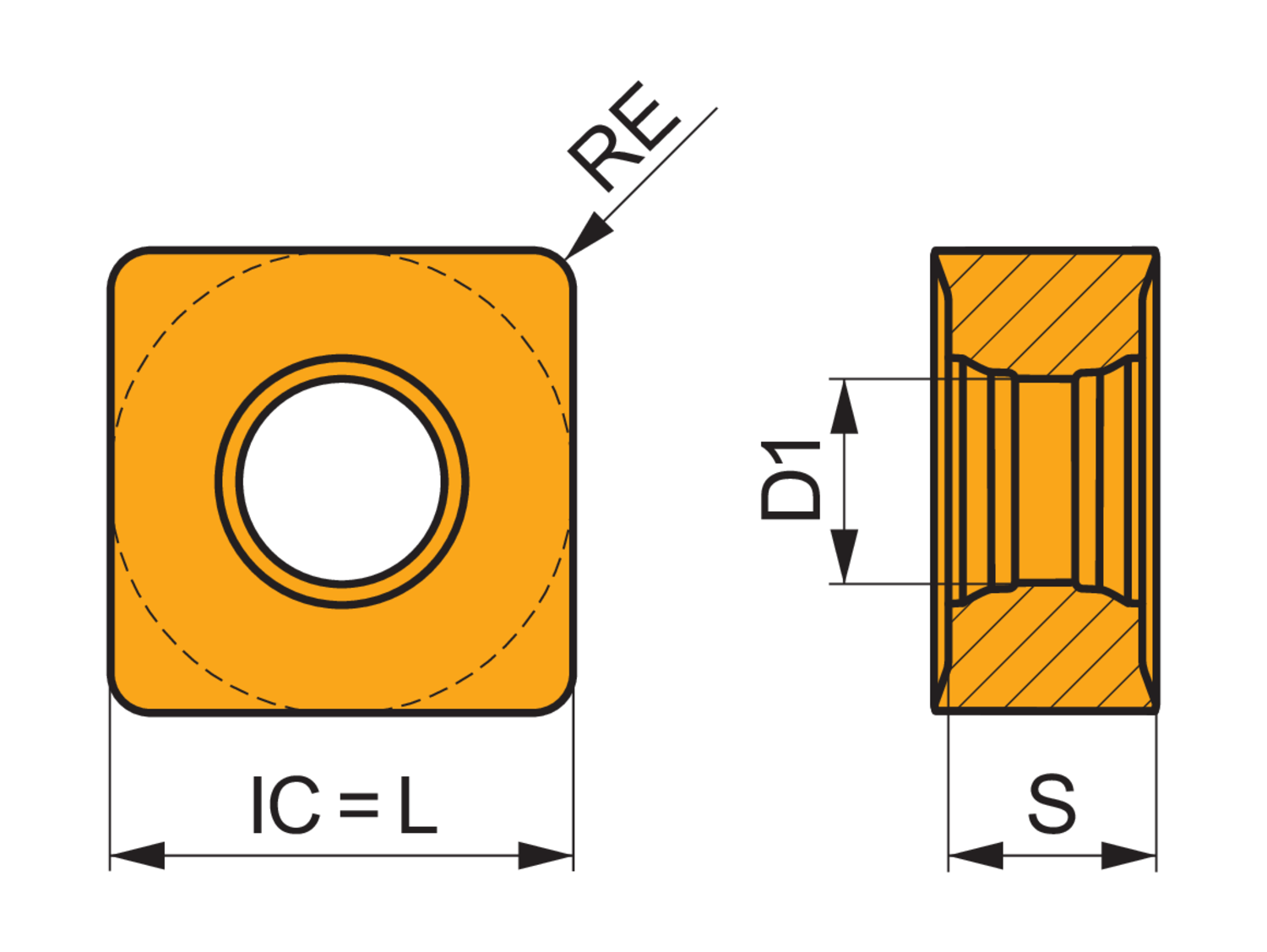

Coating property (CTP)

Corner radius - inch (RE)

0.047

Corner radius - millimeter (RE)

1.2

Cutting edge length - inch (L)

0.52

Cutting edge length - millimeter (L)

13.2

Depth of cut maximum - inch (APMX)

0.472

Depth of cut maximum - millimeter (APMX)

Feed maximal - millimeter

0.35

Feed minimal - millimeter

0.15

Fixing hole diameter - inch (D1)

0.232

Fixing hole diameter - millimeter (D1)

5.9

Inscribed circle diameter - inch (IC)

0.52

Inscribed circle diameter - millimeter (IC)

13.2

Insert thickness - inch (S)

0.235

Insert thickness - millimeter (S)

5.96

Double-sided milling insert SNGX 1305, square for a maximum depth of cut of 12.0mm, with 1.2mm corner radius, an indexing accuracy according to ISO-tolerance class-G and M geometry with rounded cutting edges and facet, M8340 PVD coated fine grained WC-Co carbide within ISO-grade range P25-P50 for machining of steel with shoulder mills with extended flute J(T)-SLSN
