Pramet SNHQ 120415TRL:M8340 6800880 Disc Mill Insert - Slotting
MODEL SNHQ 120415TRL:M8340
This product has a minimum order quantity of (10 minimum) This is the minimum order quantity available when purchasing this product.
$20.04 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $1
Select Quantity(10 minimum)
Orders over $500 qualify for a Free Gift
Typically Ships in: 1 day
Returnable: Yes
Chipbreaker
With chipbreaker -no designation
Coating
M8340
Coating process
PVD
Coating property (CTP)
1

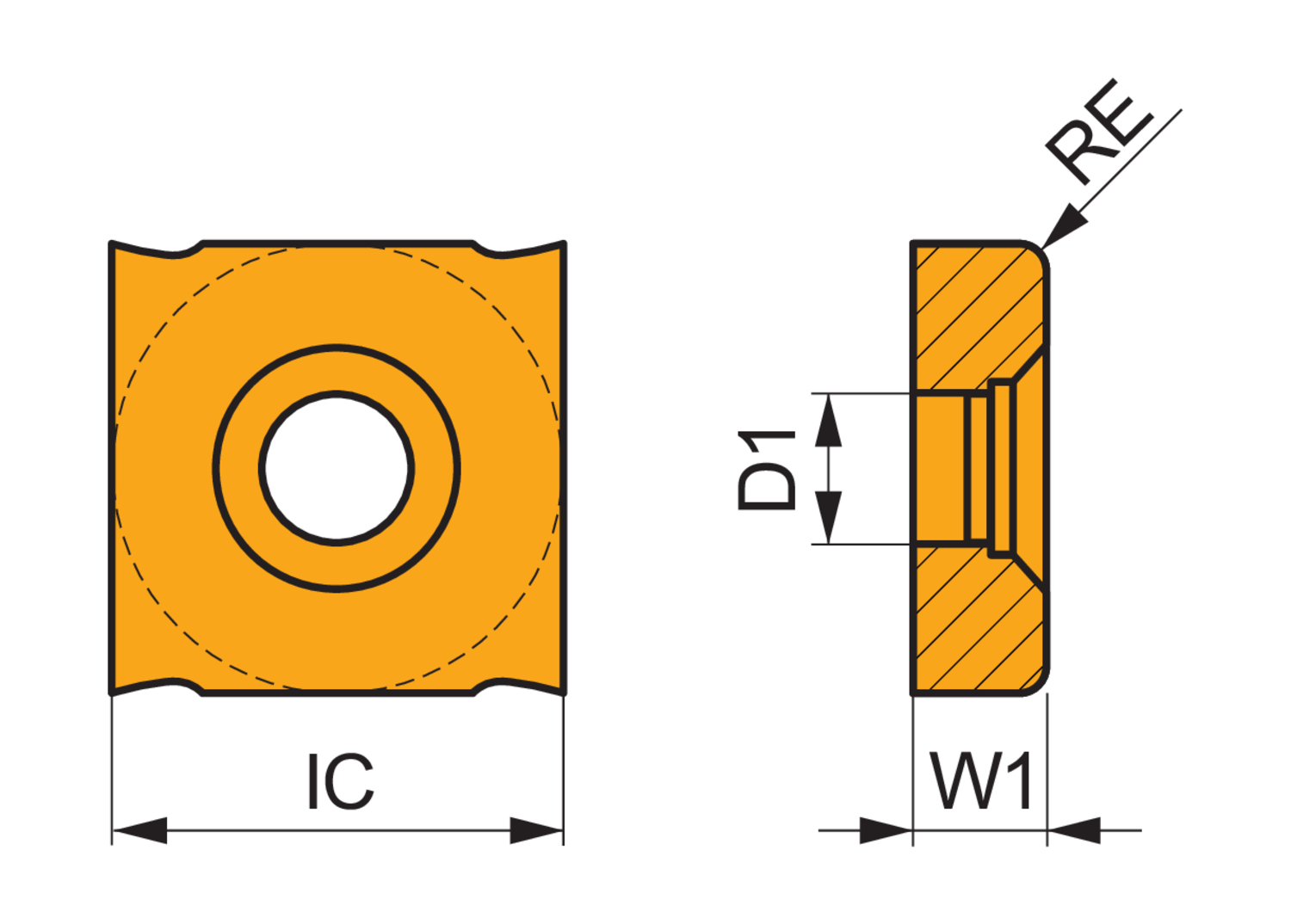

Corner radius - inch (RE)
0.059
Corner radius - millimeter (RE)
1.5
Cutting edge length - inch (L)
0.5
Cutting edge length - millimeter (L)
12.7
Feed maximal - millimeter
0.5
Feed minimal - millimeter
0.2
Feed_MAX_IMP_NUM
0.02
Feed_MIN_IMP_NUM
0.008
Fixing hole diameter - inch (D1)
0.197
Fixing hole diameter - millimeter (D1)
5
Inscribed circle diameter - inch (IC)
0.5
Inscribed circle diameter - millimeter (IC)
12.7
Insert width - inch (W1)
0.177
Insert width - millimeter (W1)
4.5
Single-sided disc milling insert, for a cutting width of 8.0mm with 1.5mm corner radius and cutting edges with facet, M8340 PVD coated fine grained WC-Co carbide within ISO-grade range P25-P50 for machining of steel with disc mills S90SN
