XNGX 1308DNSN:M8330

Image for Illustration purposes only. Actual product may vary

Pramet XNGX 1308DNSN:M8330 7606905 Milling Insert - Face

MODEL XNGX 1308DNSN:M8330

BRAND

SKU

6063398

UOM

each

This product has a minimum order quantity of (5 minimum) This is the minimum order quantity available when purchasing this product.

$33.21 Each

Prices are subject to change

FREE SHIPPING ON ORDERS OVER $1

Select Quantity(5 minimum)

GET A QUOTE

Orders over $500 qualify for a Free Gift

Typically Ships in: 1 day

Returnable: Yes

Chipbreaker

Wiper insert with chipbreaker - no designation

Coating

M8330

Coating process

PVD

Coating property (CTP)

1

Cooling effect

Slightly negative effect on tool life

Depth of cut maximum - inch (APMX)

0.138

Depth of cut maximum - millimeter (APMX)

3.5

Depth of cut minimum - inch (APMN)

0.02

Depth of cut minimum - millimeter (APMN)

0.5

Feed maximal - millimeter

0.7

Feed minimal - millimeter

0.25

Feed_MAX_IMP_NUM

0.028

Feed_MIN_IMP_NUM

0.01

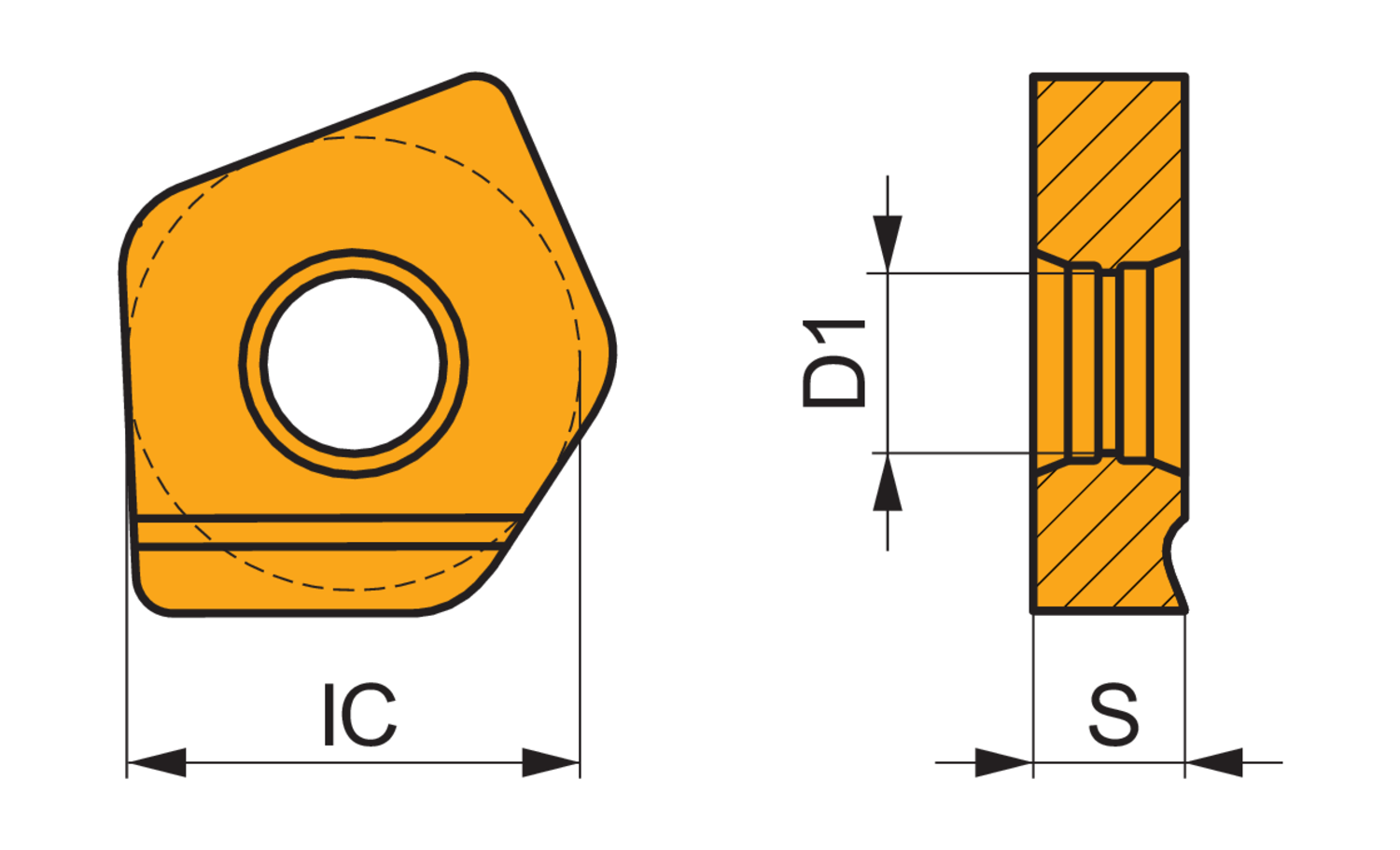

Fixing hole diameter - inch (D1)

0.394

Fixing hole diameter - millimeter (D1)

10

Inscribed circle diameter - inch (IC)

0.952

Inscribed circle diameter - millimeter (IC)

24.18

Insert thickness - inch (S)

0.313

Insert thickness - millimeter (S)

7.94

Double-sided milling insert XNGX 1308, special shape and wiper design for a maximum depth of cut of 3.5mm, with an indexing accuracy according to ISO-tolerance class-G with rounded cutting edges and facet, M8330 PVD coated fine grained WC-Co carbide within ISO-grade ranges P20-P40 and K20-K40 for machining of steel and cast-iron
