Pramet ANHX 10T320SR-F:M8310 7451999 Milling Insert - High Feed
MODEL ANHX 10T320SR-F:M8310
This product has a minimum order quantity of (10 minimum) This is the minimum order quantity available when purchasing this product.
$14.17 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $1
Select Quantity(10 minimum)
Orders over $500 qualify for a Free Gift
Typically Ships in: 1 day
Returnable: Yes
Chipbreaker
F
Coating
M8310
Coating process
PVD
Coating property (CTP)
1
Cooling effect
Slightly negative effect on tool life

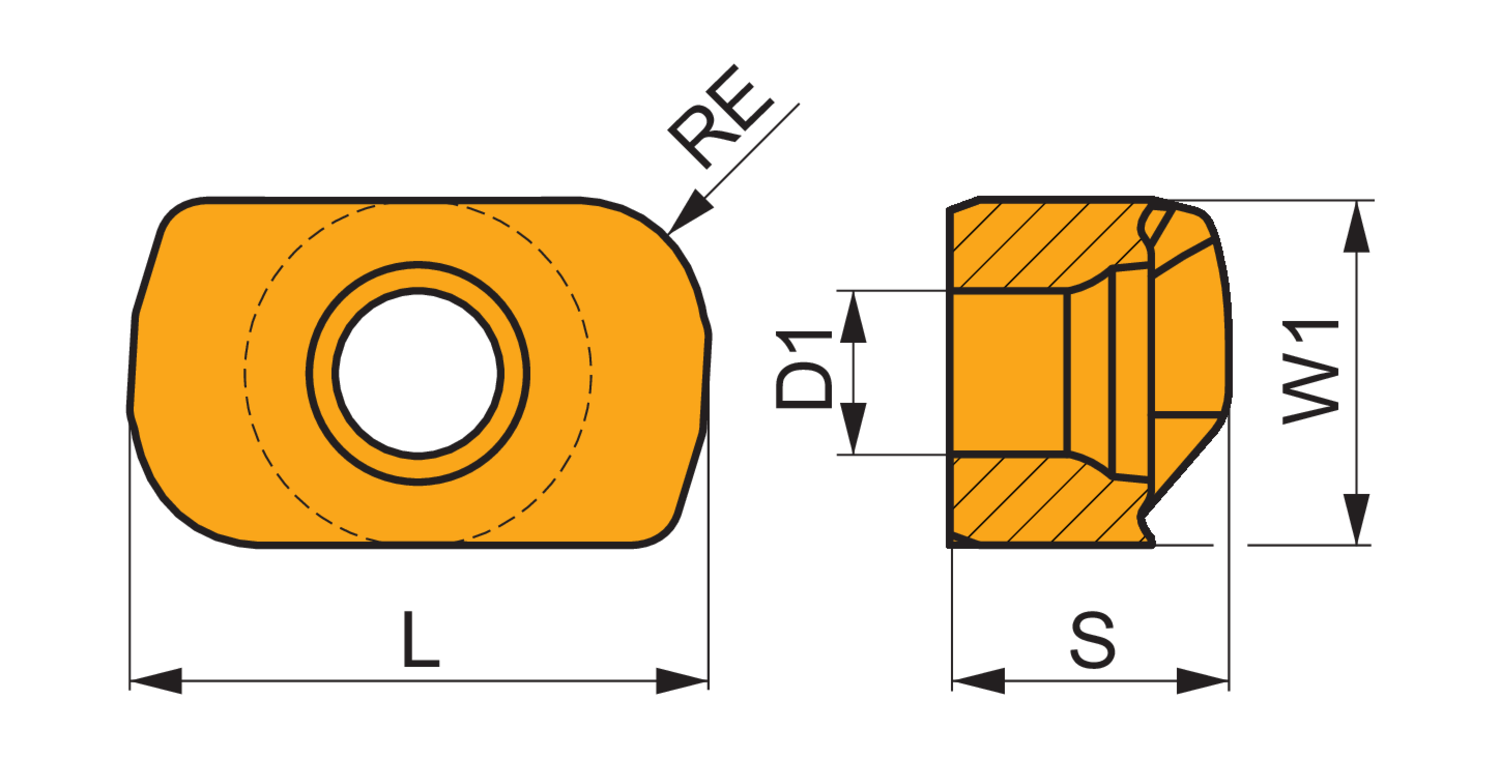

Corner radius - inch (RE)
0.079
Corner radius - millimeter (RE)
2
Cutting edge length - inch (L)
0.383
Cutting edge length - millimeter (L)
9.72
Depth of cut maximum - inch (APMX)
0.118
Depth of cut maximum - millimeter (APMX)
3
Feed maximal - millimeter
0.15
Feed minimal - millimeter
0.05
Feed_MAX_IMP_NUM
0.006
Feed_MIN_IMP_NUM
0.002
Fixing hole diameter - inch (D1)
0.109
Fixing hole diameter - millimeter (D1)
2.76
Insert thickness - inch (S)
0.185
Insert thickness - millimeter (S)
4.7
Insert width - inch (W1)
0.228
Insert width - millimeter (W1)
5.8
Single-sided milling insert ANHX 10T3, 85° parallelogram for a maximum depth of cut of 3.0mm, with 2.0mm corner radius, an indexing accuracy according to ISO-tolerance class-H and F geometry with rounded cutting edges and facet, M8310 PVD coated fine grained WC-Co carbide within ISO-grade range P01-P10 for machining of steel with high feed cutters SBN10
