![HNMF 090516SN-R:M5315](https://static.mrosupply.com/cache/db/35/db35a50f96e37b4921607671607792e8.jpg)
Image for Illustration purposes only. Actual product may vary
Pramet HNMF 090516SN-R:M5315 6756173 Milling Insert - Face
MODEL HNMF 090516SN-R:M5315
This product has a minimum order quantity of (10 minimum) This is the minimum order quantity available when purchasing this product.
$24.25 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $1
Select Quantity(10 minimum)
Orders over $500 qualify for a Free Gift
Typically Ships in: 1 day
Returnable: Yes
Chipbreaker
R
Coating
M5315
Coating process
MT-CVD
Coating property (CTP)
1
Cooling effect
Very negative effect on tool life - cooling is not recommended

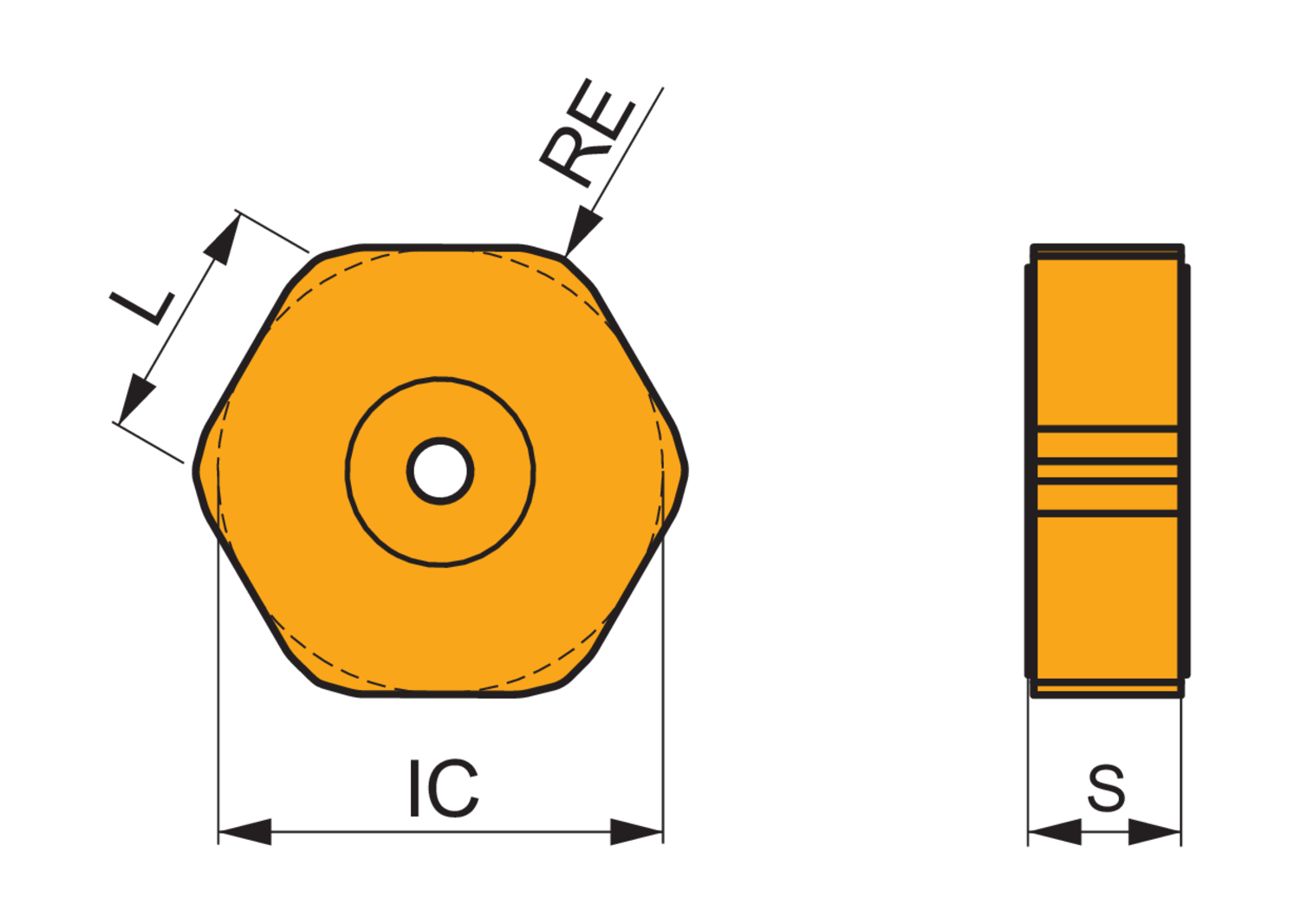

Corner radius - inch (RE)
0.063
Corner radius - millimeter (RE)
1.6
Cutting edge length - inch (L)
0.37
Cutting edge length - millimeter (L)
9.4
Depth of cut maximum - inch (APMX)
0.236
Depth of cut maximum - millimeter (APMX)
6
Depth of cut minimum - inch (APMN)
0.059
Depth of cut minimum - millimeter (APMN)
1.5
Feed maximal - millimeter
0.5
Feed minimal - millimeter
0.22
Feed_MAX_IMP_NUM
0.02
Feed_MIN_IMP_NUM
0.009
Inscribed circle diameter - inch (IC)
0.638
Inscribed circle diameter - millimeter (IC)
16.2
Insert thickness - inch (S)
0.222
Insert thickness - millimeter (S)
5.64
Double-sided milling insert HNMF 0905 with chip-breakers, hectagonal for a maximum depth of cut of 6.0mm, with 1.6mm corner radius, an indexing accuracy according to ISO-tolerance class-M and R geometry with rounded cutting edges and facet, M5315 MT-CVD coated WC-Co carbide within ISO-grade range K05-K25 for machining of cast-iron with face mills CHN09
