Image for Illustration purposes only. Actual product may vary

Pramet SCET 120408-SD:D8330 6920801 Indexable Drill Insert

MODEL 6920801

BRAND

Pramet

SKU

6068548

UOM

each

This product has a minimum order quantity of (10 minimum) This is the minimum order quantity available when purchasing this product.

$13.50 Each

Prices are subject to change

FREE SHIPPING ON ORDERS OVER $1

Select Quantity(10 minimum)

GET A QUOTE

Orders over $500 qualify for a Free Gift

Typically Ships in: 1 day

Returnable: Yes

Coating

D8330

Coating process

PVD

Coating property (CTP)

Cooling effect

Very positive effect on tool life - cooling is recommended

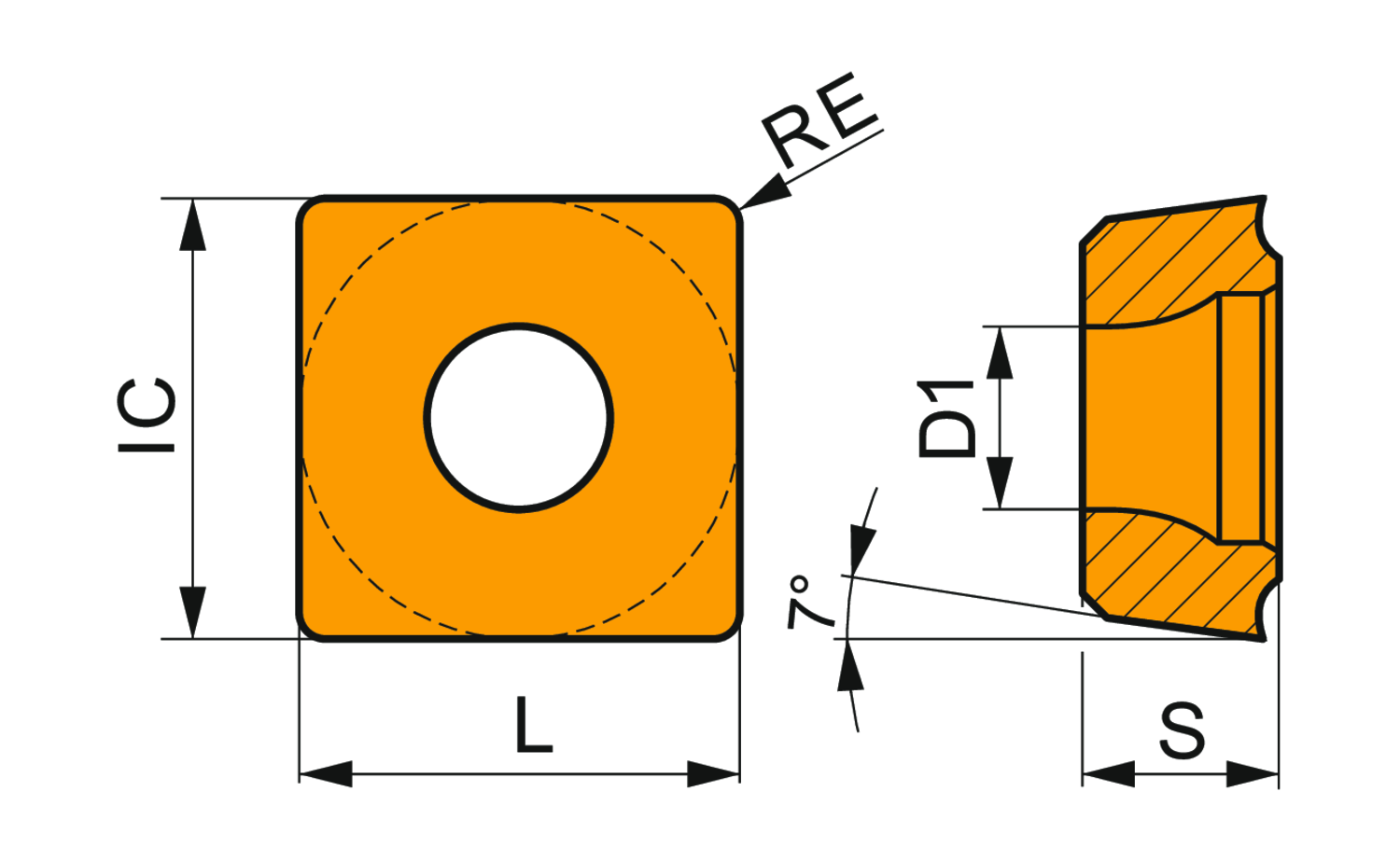

Corner radius - inch (RE)

0.031

Corner radius - millimeter (RE)

0.8

Cutting edge length - inch (L)

0.5

Cutting edge length - millimeter (L)

12.7

Feed maximal - millimeter

0.22

Feed minimal - millimeter

0.09

Feed_MAX_IMP_NUM

0.009

Feed_MIN_IMP_NUM

0.004

Fixing hole diameter - inch (D1)

0.22

Fixing hole diameter - millimeter (D1)

5.6

Inscribed circle diameter - inch (IC)

0.5

Inscribed circle diameter - millimeter (IC)

12.7

Insert thickness - inch (S)

0.187

Insert thickness - millimeter (S)

4.76

Drilling insert to fit the peripheral pocket of PRAMET 80.D indexable drills within a diameter range from 35 up to 44mm, D8330 PVD coated fine grained WC-Co carbide within ISO-grade ranges P20-P35 and M15-M30 with SD geometry for machining of steel and stainless-steel
