![C3065.0](https://static.mrosupply.com/cache/7c/a2/7ca273814135967436dabd7260052346.jpg)
Image for Illustration purposes only. Actual product may vary
Dormer C3065.0 0572832 Slot Drill 5.00 mm
MODEL C3065.0
This vendor has a minimum order quantity of 3. Order minimum ($) may be applied. Add desired QTY to cart and proceed to checkout to view minimum
$23.19 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $1
Select Quantity
Orders over $500 qualify for a Free Gift
Brand Minimum Order Quantity: 3
Typically Ships in: 1 day
Returnable: Yes
California Prop 65 warningBasic Standard
DIN 327 D

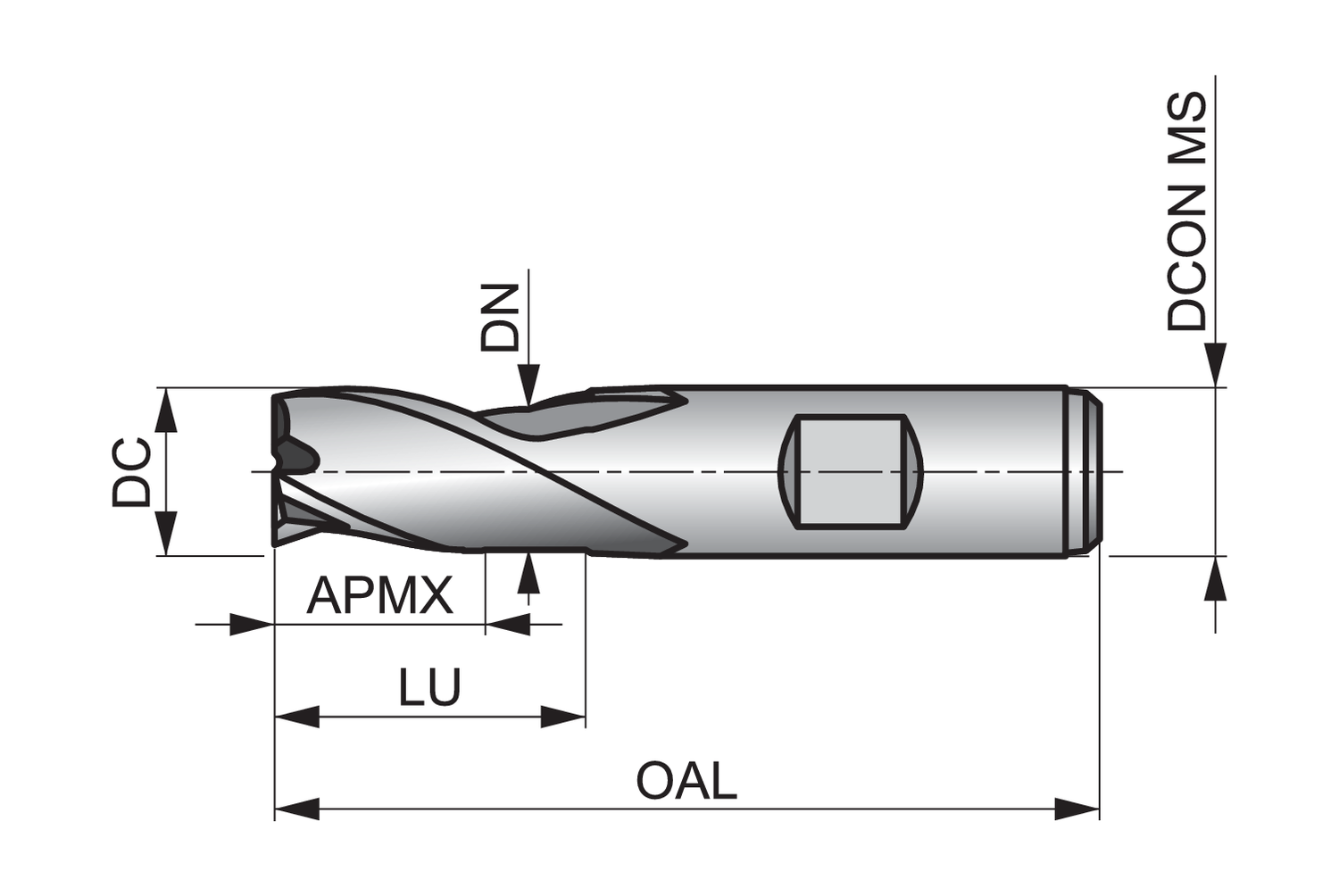

Connection diameter - millimeter (DCON MS)
6
Connection diameter tolerance machine side (TCDCONMS)
h6
Cutting diameter - millimeter (DC)
5
Depth of cut maximum - millimeter (APMX)
8
EDP number
572832
Flute count (NOF)
3
Flute helix angle (FHA)
30
Material
HSS-E-PM
Material application
N - Non-ferrous metals, P - Steel and cast steel, S - High-temperature alloys
MID number
5984815
Ordering code ANSI
C3065.0
Peripheral effective cutting edge count (ZEFP)
3
Radial rake angle (GAMF)
12
C306 3-flute milling cutters are manufactured from powder metal High Speed cobalt for superior performance and extended tool life.
The short length flute design provides high rigidity for milling shallow slots whilst the accurate diameter means you can mill standard keyway slots to P9 tolerance.
The bright finish prevents workpiece material from sticking to the cutting edges of the tool for clean, accurate milling.
The versatility of C306 3-flute milling cutters is confirmed by their wide range of use for plunging, ramping and profile milling in steels, stainless steels and cast iron
