![F201M16](https://static.mrosupply.com/cache/ad/20/ad20b048eb9429db76c389587154b4f7.jpg)
Image for Illustration purposes only. Actual product may vary
Dormer F201M16 0105023 M Gun Nosed Die ISO 2568 M16 x 2.00 mm
MODEL F201M16
$107.67 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $1
Select Quantity
Orders over $500 qualify for a Free Gift
Typically Ships in: 1 day
Returnable: Yes
Basic Standard
ISO 2568

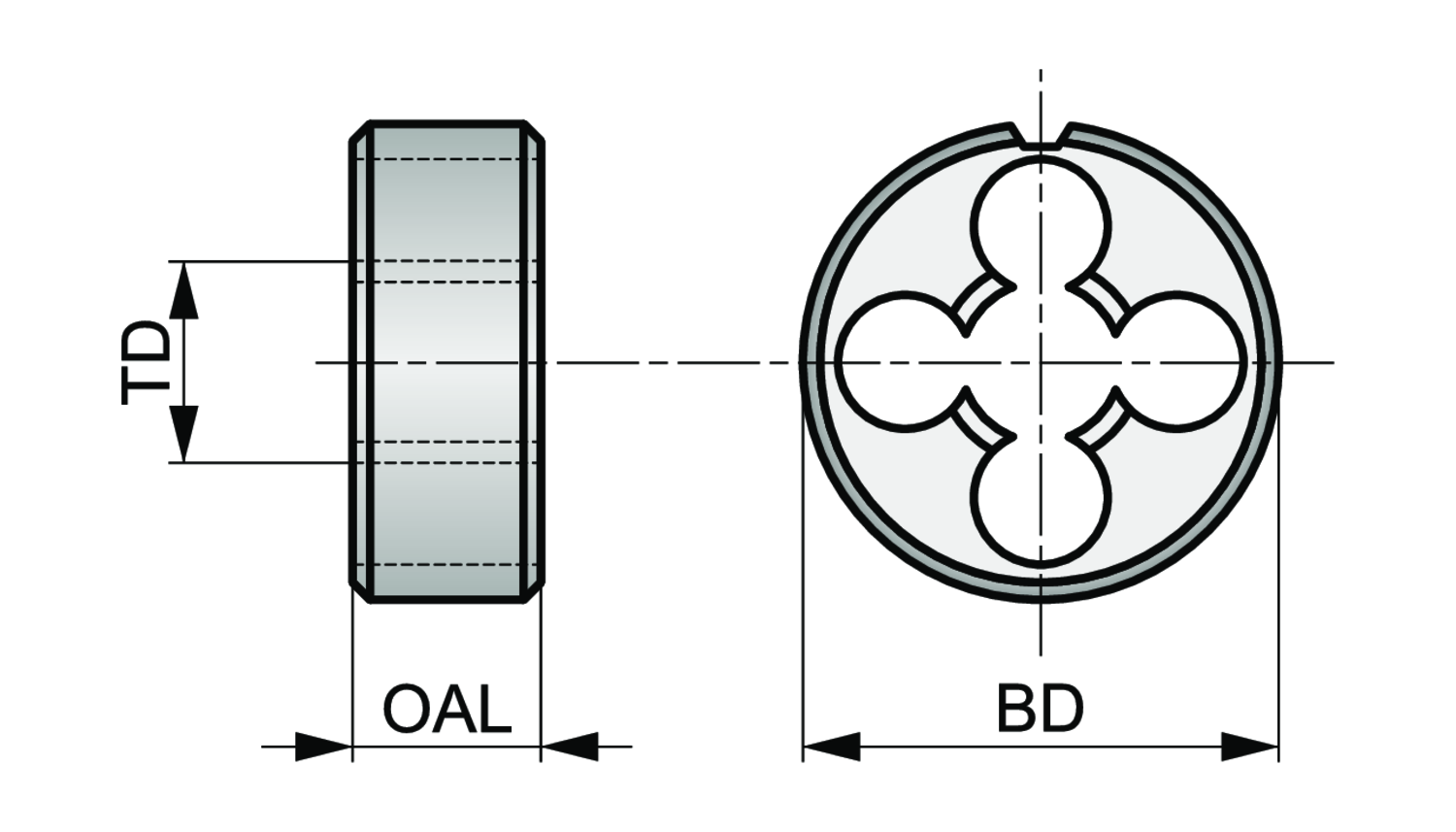

Body diameter - millimeter (BD)
45
Die chamfer to pitch ratio (DCPR)
1.75
EDP number
105023
Material
HSS
Material application
K - Cast iron, M - Stainless steel, N - Non-ferrous metals, P - Steel and cast steel
MID number
5977836
Ordering code ANSI
F201M16
Overall length - millimeter (OAL)
18
Thread diameter - millimeter (TD)
16
Thread diameter size (TDZ)
16
Thread pitch - millimeter (TP)
2
Solid round die with a gun nose, for left hand ISO-Metric thread M16 with 2.00 mm pitch and 6g class of fit, dimensions according to ISO 2568 standard with 45mm outside diameter and 18mm thickness, HSS with bright finish for threading in free machining and plain carbon steel, ferritic stainless steel and gray, malleable, ductile and compacted graphite cast-iron.
