![M40CO5/16](https://static.mrosupply.com/cache/da/62/da622527777e1ca5e5a649d6387d9e7f.jpg)
Image for Illustration purposes only. Actual product may vary
M40CO5/16 040320 Bronze 135° Stub Drill ANSI 5/16 inch
MODEL M40CO5/16
This vendor has a minimum order quantity of 13. Order minimum ($) may be applied. Add desired QTY to cart and proceed to checkout to view minimum
This product has a minimum order quantity of (6 minimum) This is the minimum order quantity available when purchasing this product.
$7.38 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $1
Select Quantity(6 minimum)
Orders over $500 qualify for a Free Gift
Brand Minimum Order Quantity: 13
Typically Ships in: 1 day
Returnable: Yes
California Prop 65 warningBasic Standard
ANSI

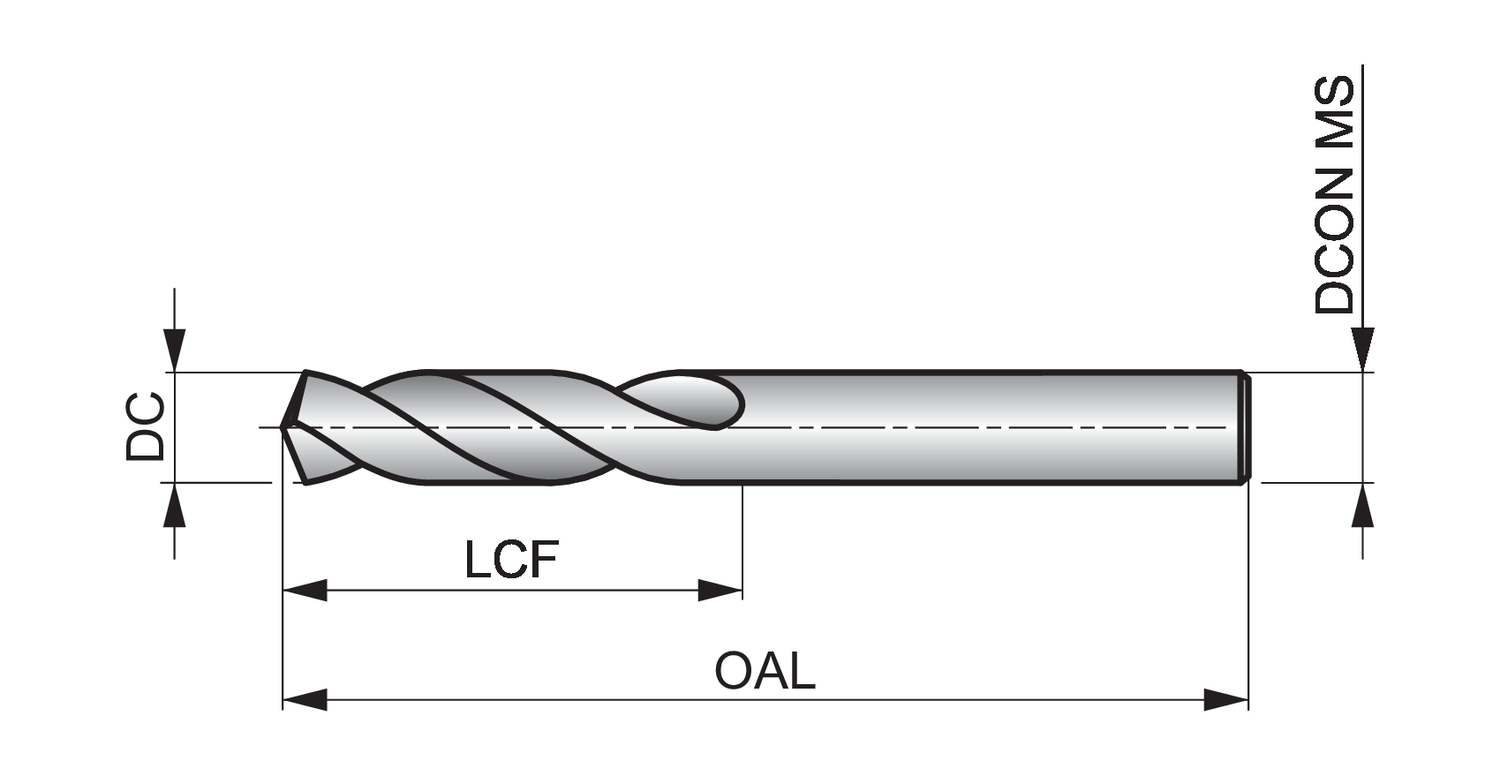

Cutting diameter - fractional inch (DC)
5/16
Cutting diameter - inch (DC)
0.3125
Length chip flute - fractional inch (LCF)
1.5/8
Material
HSS-E
Overall length - fractional inch (OAL)
2.13/16
Point Angle (SIG)
135
Spiral form
Usable length (ULDR)
2.5
M40CO screw machine length drill bits are of a heavy duty design, recommended for use when drilling difficult materials and applications. They are manufactured from High Speed cobalt, suitable for drilling hard materials including tool steel, and have a bronze oxide finish to stop workpiece material from sticking to the cutting surfaces of the tool, so you get a more accurate hole.
The 135 degree split point is an aid to self-centering, so no drill wander over the workpiece surface, and reduces the force needed to drill down.
M40CO drill bits are available in fractional sizes from 1/16” to 3/4” in 1/64” increments.
